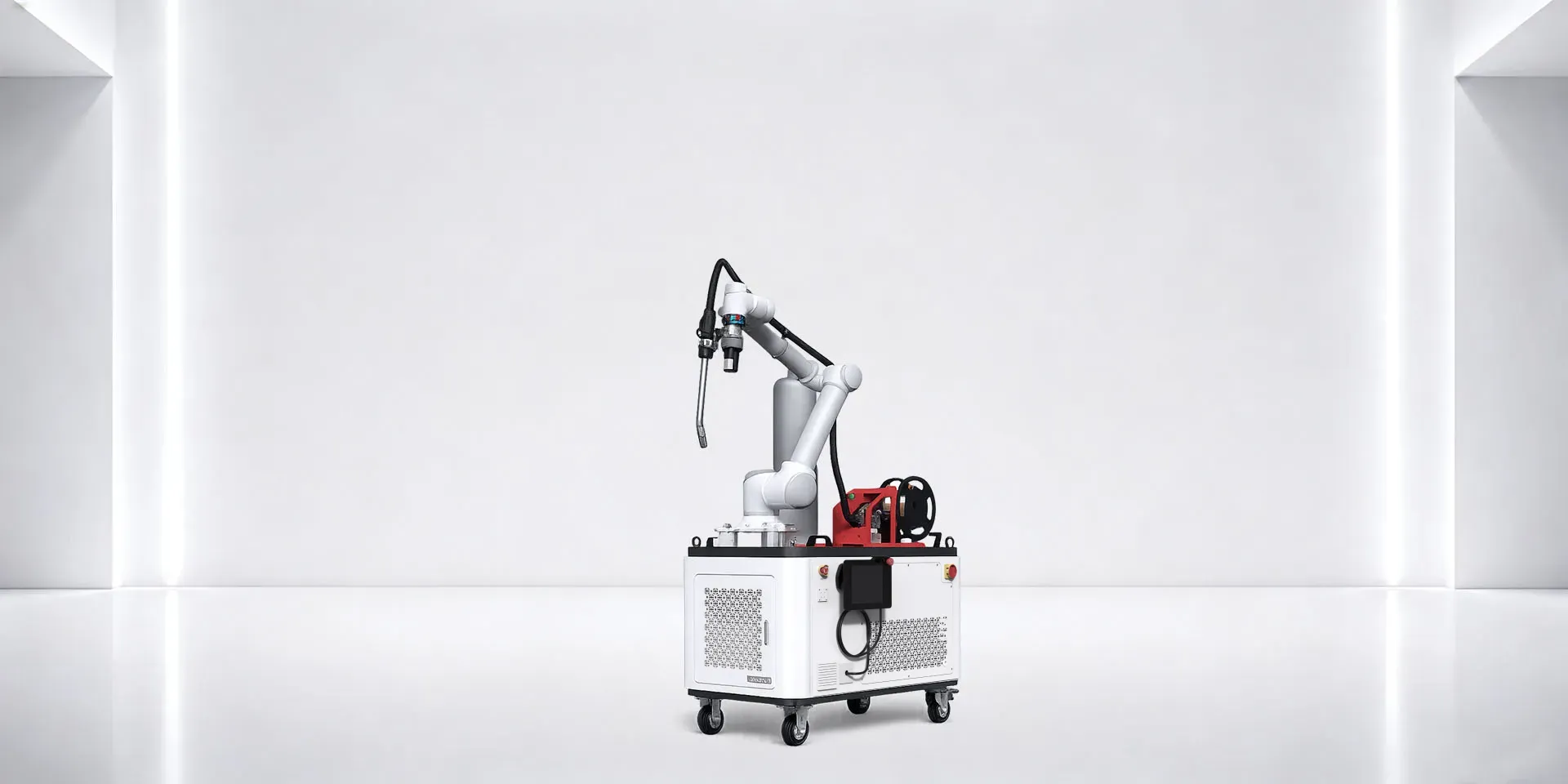

This collaborative laser welding robot integrates 6-axis motion, laser welding, wire feeding, water cooling, and controls in one mobile workstation, with a 618–1300 mm working radius and 3–10 kg payload.
| Parameter | Specification |
| Product Type | Collaborative Laser Welding Robot |
| Laser Type | Fiber Laser |
| Output Power | 1.5–12 kW |
| Applicable Materials | Metal, Aluminum, Stainless Steel |
| Welding Speed | 0–120 mm/s |
| Wavelength | 1080 nm |
| Robot Structure | 6-Axis Collaborative Robot |
| Repeatability | ±0.02 mm |
| Working Radius | 618–1300 mm |
| Maximum Payload | 3–10 kg |
| Laser Head Brand | Suplaser |
| Cooling Type | Water Cooling |
| Welding Wire | 1.2–1.6 mm |
| Gas Configuration | CO₂ / Mixed Gas |
| Machine Structure | Robotic and Multi-Axis Integrated |
| Overall Dimensions | 1200 × 800 × 1200 mm |
| Power Supply | AC380V, 50Hz, 3-Phase 5-Wire |
| Condition | New |
Exclusive Safety Function: The system automatically alerts when gas pressure is too low. This critical feature prevents burning out the laser head lens and the QBH connector, significantly extending the machine’s lifespan and reliability.

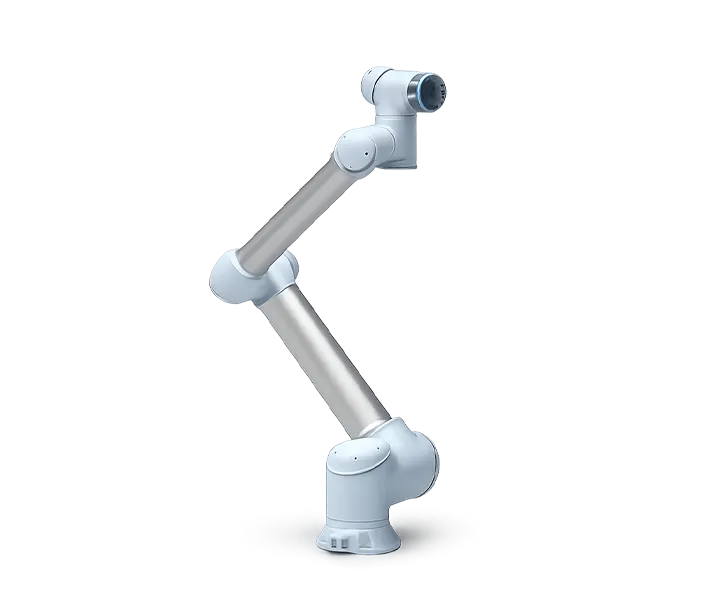

The 6-axis robotic arm provides multi-directional movement for different welding positions and component geometries. A supplied repeatability specification of ±0.02 mm supports consistent programmed motion during repetitive welding operations.

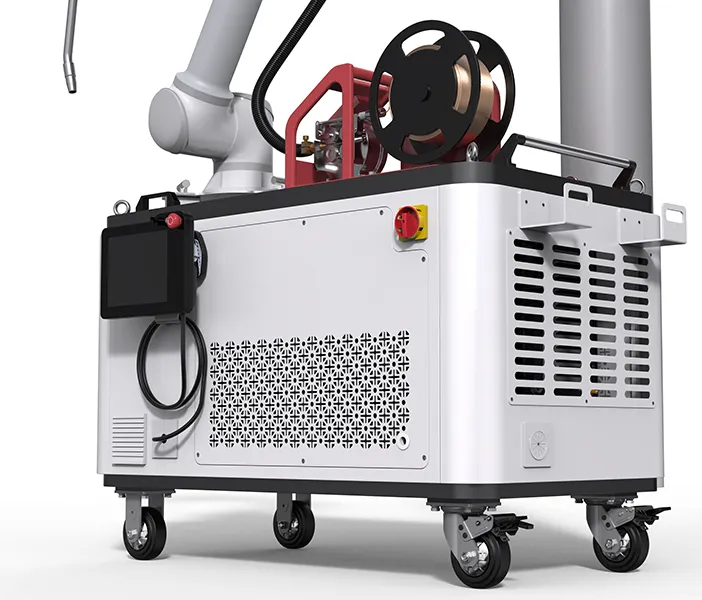

The intelligent touch-screen system supports mobile-terminal APP and PC monitoring, providing real-time feedback on the machine’s operating status. This allows operators to check working conditions more conveniently and respond promptly to system information.
After laser focusing, the beam provides high power density with a small focal spot. The welding process produces minimal spatter, helping create cleaner welds and reducing the need for basic post-weld grinding.
The six-axis structure provides flexible orientation around suitable workpieces, helping the robot reach different welding angles and positions within its configured working envelope.
Specified repeatability of ±0.02 mm supports consistent robot positioning during repetitive programmed welding operations, especially where production requires the same welding path across multiple parts.
The robot, laser system, water cooling, wire feeder and operating interface are combined within one mobile workstation, helping simplify equipment arrangement and workshop space planning.
Working-radius options from 618 to 1300 mm and payload configurations from 3 to 10 kg allow the robotic laser welding machine to be matched to different workpiece and application requirements.
We utilize the premium Raycus single-mode continuous fiber laser (1.5kW/2kW/3kW).
Maintenance-Free: Modular design with a highly integrated system.
High Beam Quality: Laser power is continuously adjustable, ensuring deep penetration and superior welding stability.

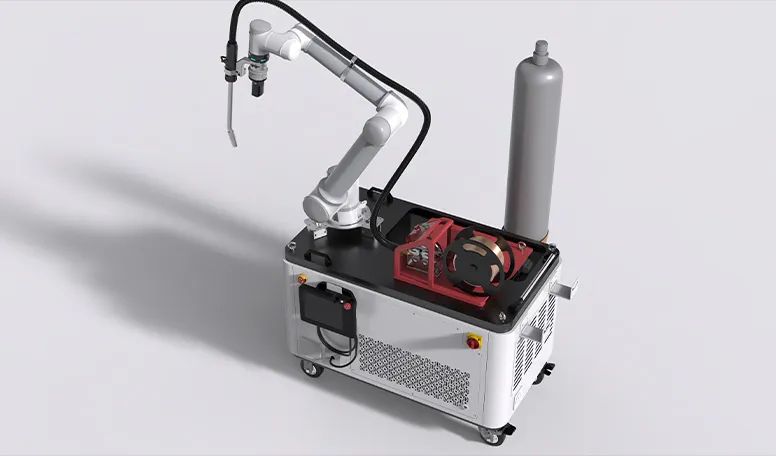

The integrated wire-feeding arrangement supports 1.2–1.6 mm welding wire according to the supplied specification. It is installed directly on the workstation to maintain a compact system layout and support continuous configured welding processes.
Integrated wire feeder
1.2–1.6 mm welding wire
Compact installation with the robot workstation
Eye Protection: Specialized glasses designed to prevent or reduce laser damage to the eyes.
Wavelength Coverage: Protects against wavelengths in the range of 190-420nm & 850-1300nm.
High Durability: Suitable for 1kW-5kW laser power environments with a long service life.
Every machine, tested to the same exacting standard
